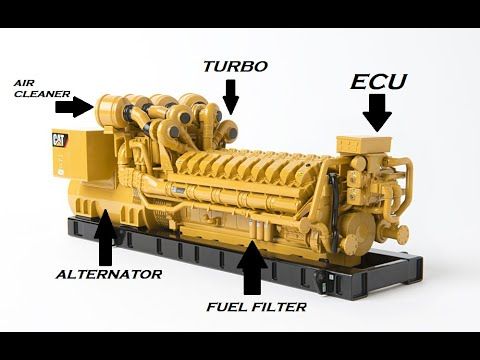

ENGINE ASSEMBLY ANIMATION WITH PART NAMES LABELLED

توضیحات:

This video presents an animated assembly of the Caterpillar C175 diesel engine, with all sub‑assemblies and parts labeled for reference, especially useful for engineering students. It explains the engine’s 4‑stroke cycle—intake, compression, power, and exhaust—detailing how the piston, valves, and camshaft work together, and highlights key components such as the cylinder head, fuel pump, and turbocharger. The animation also provides basic specifications of the C175, including its 5.3‑liter per cylinder displacement, 6.89 × 8.66 bore/stroke, and power output range of 1,500–4,800 hp at 1,800 RPM.
