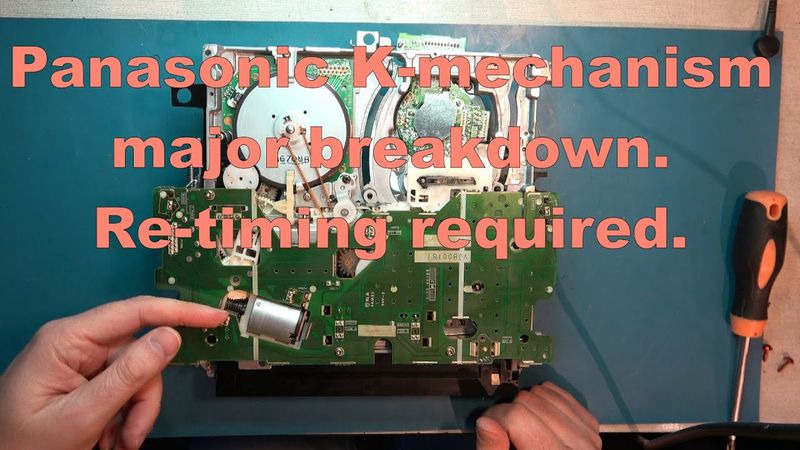

Panasonic AG-4700, re-timing K-mechanism, NV-HS1000, NV-HS950 and more.

Description :

A breakdown of one of our AG-4700 SuperVHS machines with a timebase corrector turns into a big job that includes re‑timing the mechanism. The video starts with an introduction and fault at 00:00, followed by a dismantle at 02:28. At 04:29 the mode switch is shown, and the first test occurs at 08:18. Another mode switch is demonstrated at 09:45, leading to a second test at 12:05. The dismantle continues at 12:52, and progress is made at 14:47. A broken part is swapped at 18:17, after which re‑timing and assembly take place at 20:30. The cassette carriage is installed at 30:19, dry joints are applied at 35:00, and a test with front re‑fit is performed at 36:30. The demonstration is shown at 38:42, concluding the repair at 40:36.
